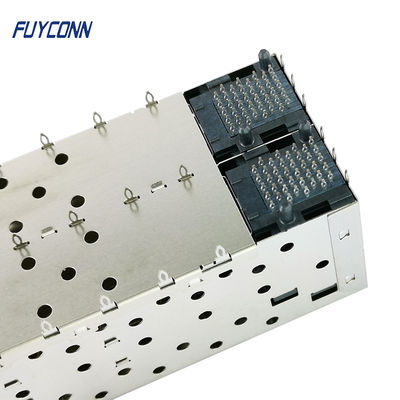

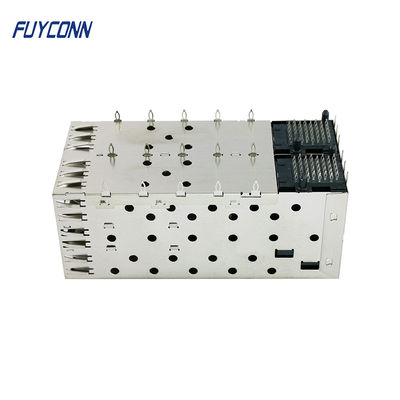

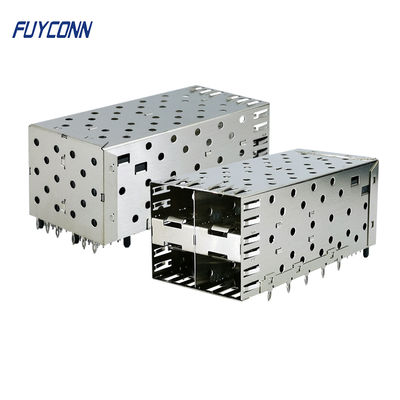

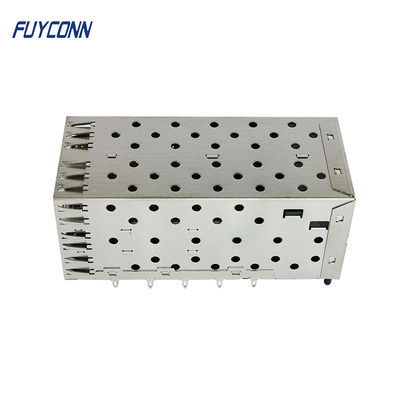

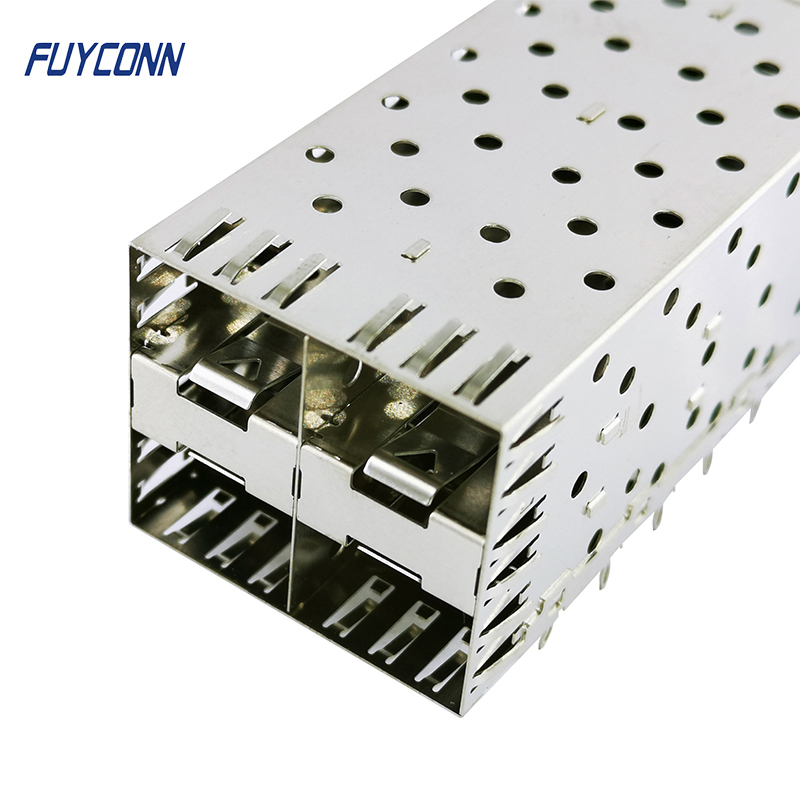

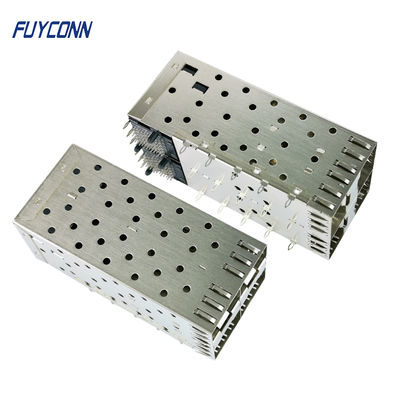

Double Layers 2x2 Ports Press-Fit 80Pin SFP Connector
2-by-2 Multi-Port Female SFP Cage Assembly
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s according to IEEE 802.3 and SFF-8472 specifications.
The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432) while maintaining the same form factor. Both SFP and SFP+ support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other communication standards in both copper and optical variants.
Product Specifications
| Product Name: |
SFP Connector |
| Product Line: |
Small Form-factor Pluggable |
| Connector Gender: |
Female Centronic Connector |
| Contact Type: |
Small Form-factor Pluggable |
| Number of Positions: |
80pin |
| Ports: |
2×2 (4 Ports) |
| Contact Material: |
Phosphor Bronze |
| Finish: |
Nickel Silver |
| Insulation Material: |
PBT |
| Lightpipe: |
No |
Electrical Specifications
| Current Rating: |
1AMP |
| Withstanding Voltage: |
500V for one minute |
| Insulator Resistance: |
500MΩ min (at DC500V) |
| Contact Resistance: |
35MΩ Max |
| Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch systems
- Data/Communications infrastructure
- High-end servers
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet systems
Packaging & Shipping
Our products are securely packaged using:
- Vacuum trays
- PE bags
- Reinforced boxes/cartons
- PE bags with protective strips
About Dongguan Fuyconn Electronics
Established in 2004, we specialize in IT and communication connectors including 57 series centronic IDC connectors, V.35 connectors, D-SUB connectors, SCSI series, and RJ series with over 1,000 models available.
Our UL- and SGS-certified, RoHS-compliant products maintain a defect rate below 0.5%. Our 5,000 sqm ISO 9001:2008 and ISO 14001:2004 certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
Why Choose Us
- 16 years of Centronic Connector production experience
- R&D engineers with 20+ years experience
- Thousands of molds available
- UL Certified, ROHS compliant products
- Factory-direct pricing
- Free samples within 2 days
- Short lead times (1 week for standard products)
- No minimum order quantity
- Custom logo options available
- Full production control from injection to assembly
- Flexible payment methods
