| 포트 수: | 2*1 듀얼 포트 | 단말기 수: | 40 핀 |
|---|---|---|---|
| 커넥터 성별: | 여성 | 색상: | 닉 실버 |
| 절연체 재료: | PBT | 접촉 핀 재료: | 형광 청동 |
| 발 유형: | 솔더리스 핀 | 라이트 파이프: | 예 |
| 현재 등급: | 1AMP | 내 전압: | 1 분 동안 500V |
| 절연체 저항: | 500mΩ min (DC500V) | 접촉 저항: | 최대 35mΩ |
| 작동 온도: | +105' Ｃ에 대한 -55' Ｃ | 데이터 속도 속도: | 최대 10GB/s |
| 장착 유형: | PCB | ||
| 강조하다: | 2 port SFP+ connector PCB mount,40 pin female SFP+ connector,SFP+ connector with light indicator |
||

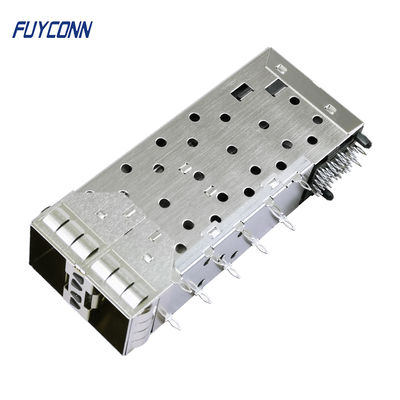

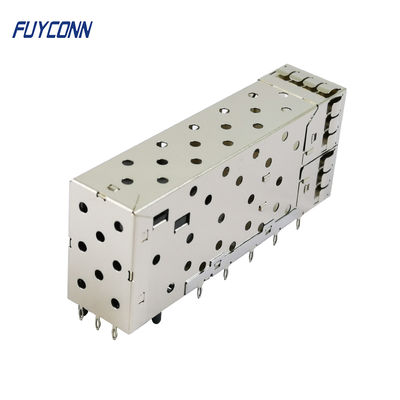

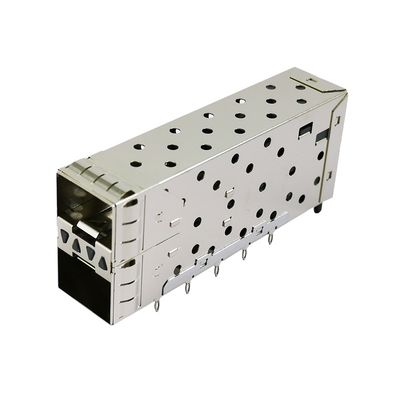

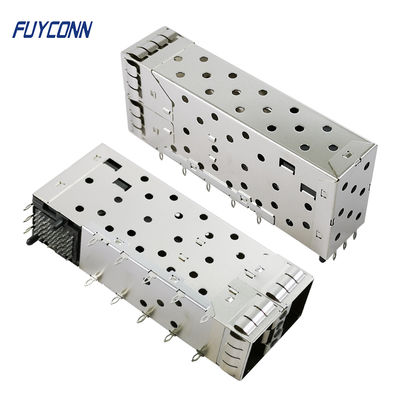

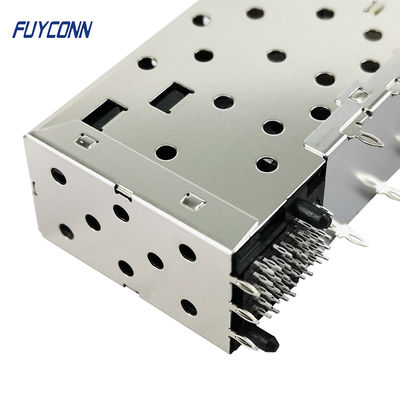

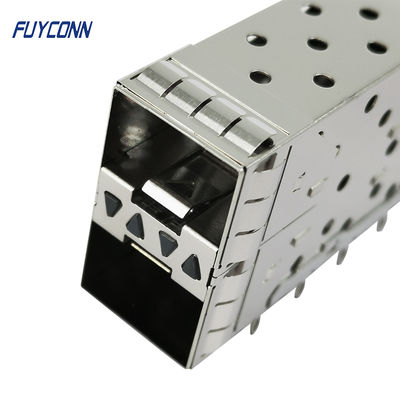

The SFP+ (Small Form-factor Pluggable Plus) connector is a high-performance optical transceiver designed for data communication applications. This 2x1 2-port configuration features press-fit termination and includes a lightpipe for status indication.
| Feature | Specification |
|---|---|
| Product Name | SFP Connector |
| Product Line | Small Form-factor Pluggable |
| Connector Gender | Female Centronic Connector |
| Contact Type | Small Form-factor Pluggable |
| Number of Positions | 40pin |
| Ports | 2x1 2 Ports |
| Contact Material | Phosphor Bronze |
| Finish | Nickel Silver |
| Insulation Material | PBT |
| Lightpipe | Yes |
| Parameter | Value |
|---|---|
| Current Rating | 1AMP |
| Withstanding Voltage | 500V for one minute |
| Insulator Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max |
| Operation Temperature | -55°C to +105°C |
Our products are securely packaged using:
Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
