6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

Name: 6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: fuysfp2034
Price: 5 USD
Availability: InStock

모든 제품

Centronics 연결관
(198)

DIN 41612 연결기
(170)

스카시 연결관
(67)

50의 핀 centronics 연결관
(57)

36의 Pin Centronics 연결관
(20)

64 핀 센트로닉 연결기
(28)

V.35 라우터 연결기
(11)

D 이하 연결관
(66)

IDC 케이블 어셈블리
(14)

IDC 크림프 커넥터
(31)

챔피언 연결관
(91)

IEEE 1284년 연결관
(33)

RJ45 연결관
(9)

병렬 포트 연결관
(44)

여성 PCB 연결관
(49)

남성 PCB 연결관
(28)

땜납 핀 커넥터
(36)

카드 커넥터
(17)

SFP 연결기
(16)

인증

제가 지금 온라인 채팅 해요

6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

큰 이미지 : 6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

제품 상세 정보:

원래 장소:	광동, 중국
브랜드 이름:	FUYCONN
모델 번호:	fuysfp2034

결제 및 배송 조건:

최소 주문 수량:	100
가격:	$5

접촉

6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

설명

커넥터 유형:	PCB	포트 수:	1*6 듀얼 포트
성별:	여성	색상:	닉 실버
절연체 재료:	PBT	접촉 핀 재료:	형광 청동
feets:	핀을 누릅니다	라이트 파이프:	가벼운 파이프로
현재 등급:	1AMP	내 전압:	1 분 동안 500V
절연체 저항:	500mΩ min (DC500V)	접촉 저항:	최대 35mΩ
작동 온도:	+105' Ｃ에 대한 -55' Ｃ	데이터 속도 속도:	최대 10GB/s
포트 구성:	6곳 공항
강조하다:	6 port SFP+ cage with light pipe , press-fit SFP+ connector 1x6 , SFP+ cage with press-fit termination

Press-Fit Termination 1x 6 SFP Cage Without Light, SFP Series 6 Ports Straight SFP+ Cage

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace the GBIC connector, it offers greater port density while handling up to 4.25Gb/s. The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s for Fibre Channel, 10GbE, SONET, OTN, and other standards.

Product Features

Product Name:	SFP Cage
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	No Connector, Cage only
Ports:	1x6 (6 Ports)
Finish:	Nickel Silver
Lightpipe:	With Light

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Networking
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

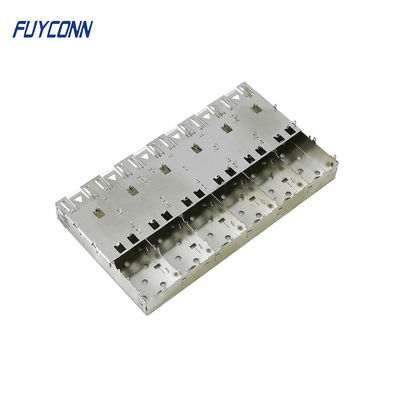

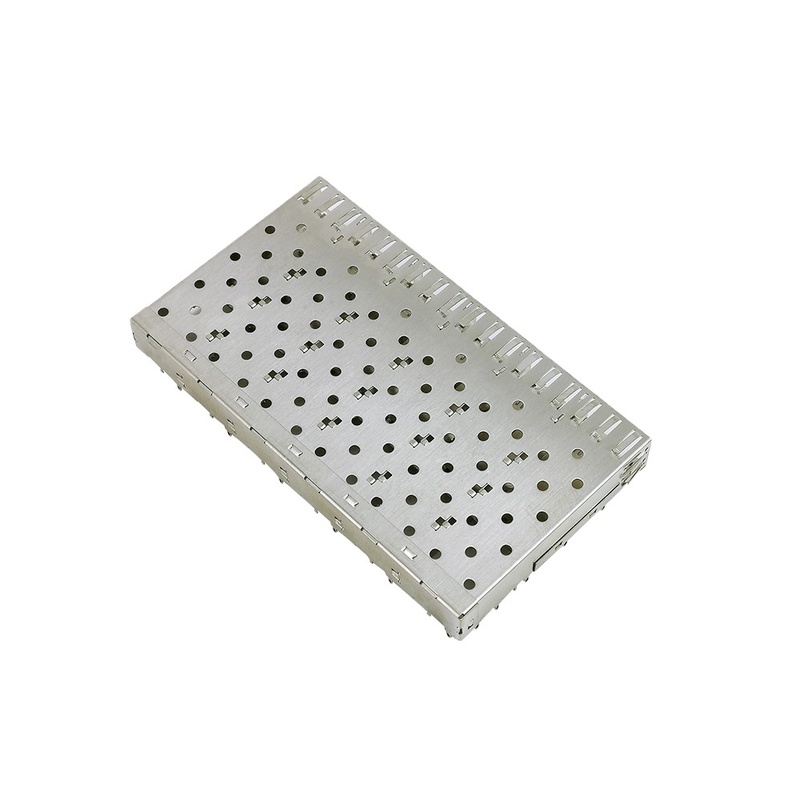

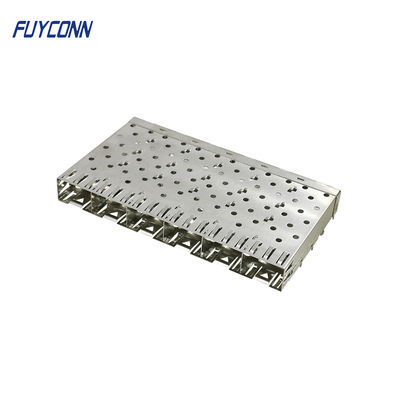

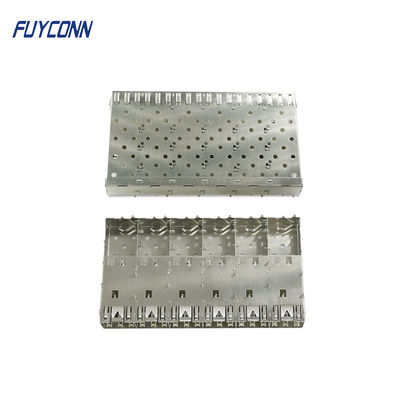

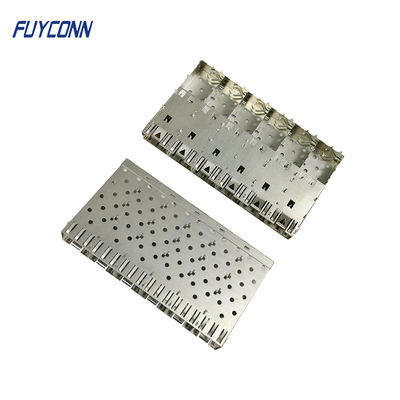

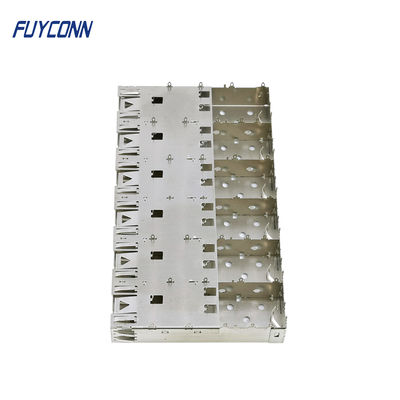

Product Images

Packaging & Shipping

Strong Package Options:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors including 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series with over 1,000 models available.

Our UL- and SGS-certified products are RoHS compliant with a defect rate below 0.5%. Our ISO 9001:2008 and ISO 14001:2004 certified 5,000 square meter factory includes R&D, molding, plastic injection, stamping, and assembly production lines.
