| 포트 수: | 2*4 듀얼 포트 | 단말기 수: | 160 핀 |
|---|---|---|---|
| 접촉 핀 재료: | 형광 청동 | 절연체 재료: | PBT |
| 색상: | 닉 실버 | 발 유형: | 핀을 누릅니다 |
| 라이트 파이프: | 가벼운 파이프로 | 현재 등급: | 1AMP |
| 내 전압: | 1 분 동안 500V | 절연체 저항: | 500mΩ min (DC500V) |
| 접촉 저항: | 최대 35mΩ | 작동 온도: | +105' C에 대한 -55' C |
| 커넥터 성별: | 여성 | 연락처 유형: | 작은 형태 인자 플러그 가능 |
| 마치다: | 니켈 실버 | ||
| 강조하다: | 2x4 port SFP connector,160 pin SFP connector,SFP connector with light pipe |
||

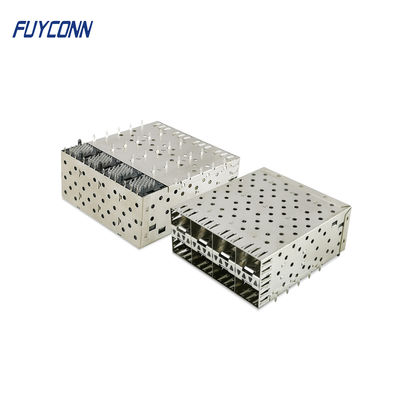

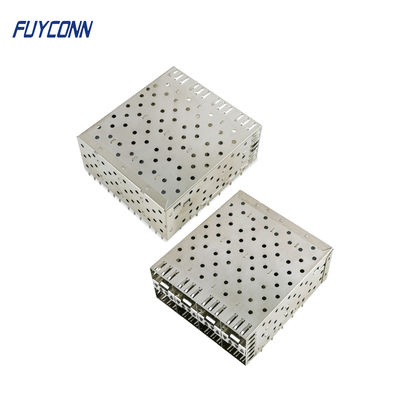

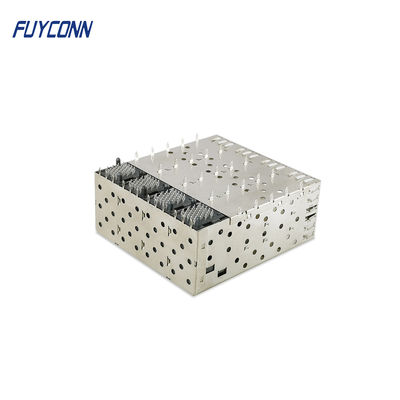

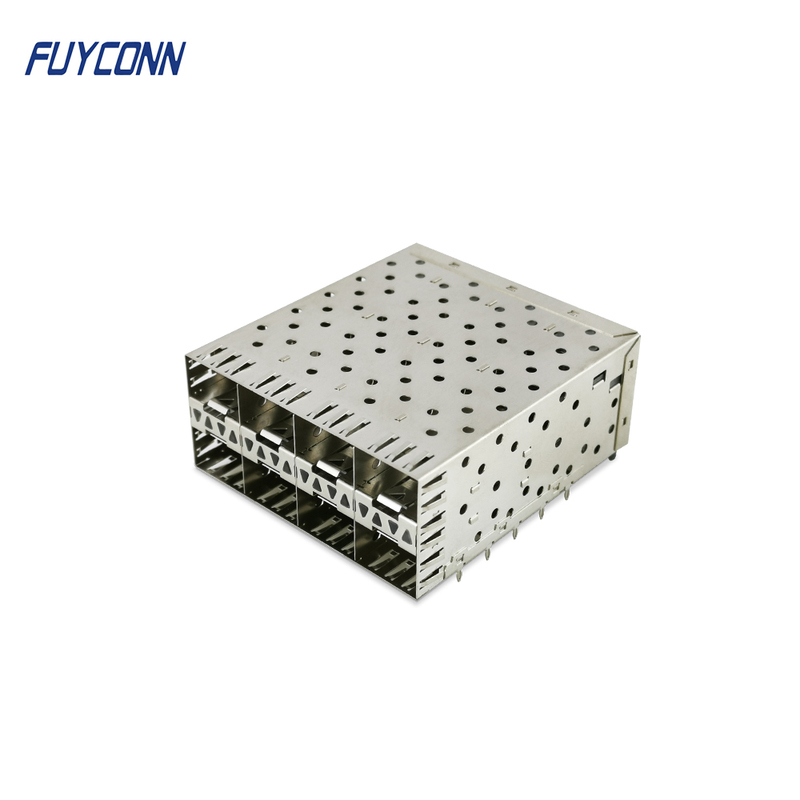

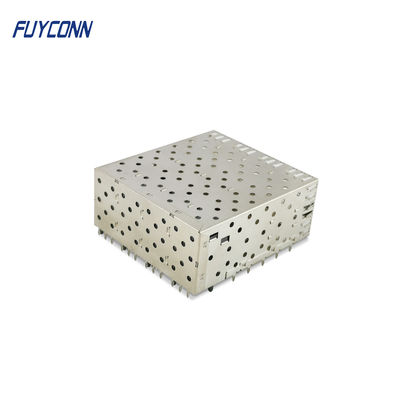

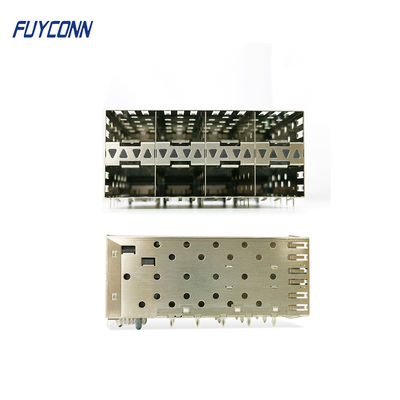

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light Product Overview The 2x4 Ports Housing Shielded Press-Fit Stackable 160P SFP Connector is a high-performance Small Form-factor Pluggable (SFP) module connector designed for data communication applications. First introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while supporting data rates up to 4.25Gb/s. The SFP+ variant, introduced in 2006, extends this
