| 핀 수: | 240 핀 | 포트 수: | 2*6 듀얼 포트 |
|---|---|---|---|
| 주택 자료: | 금속 | 절연체 재료: | PBT |
| 접촉 핀 재료: | 형광 청동 | 커넥터 성별: | 여성이고 여성입니다 |
| 현재 등급: | 1AMP | 내 전압: | 1 분 동안 500V |
| 절연체 저항: | 500mΩ min (DC500V) | 접촉 저항: | 최대 35mΩ |
| 작동 온도: | +105' C에 대한 -55' C | 라이트 파이프: | 가벼운 파이프로 |
| 연락처 유형: | 작은 형태 인자 플러그 가능 | 마치다: | 니켈 실버 |
| 모양: | 구형 | ||
| 강조하다: | 240 pin SFP+ fiber optic connector,dual port SFP+ connector with light pipe,2x6 SFP+ fiber optic connector |
||

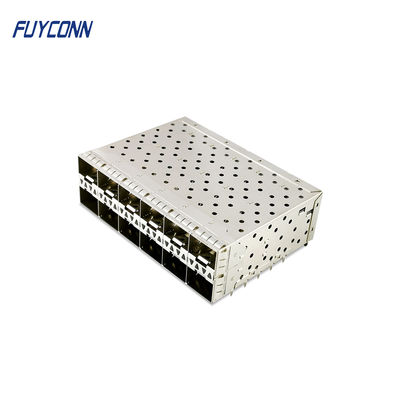

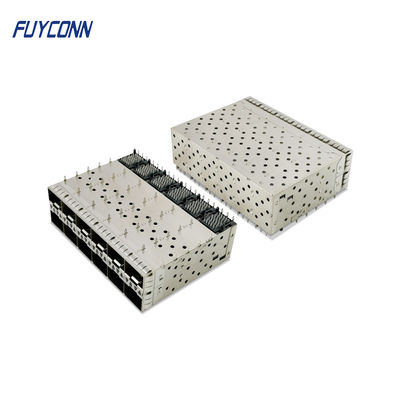

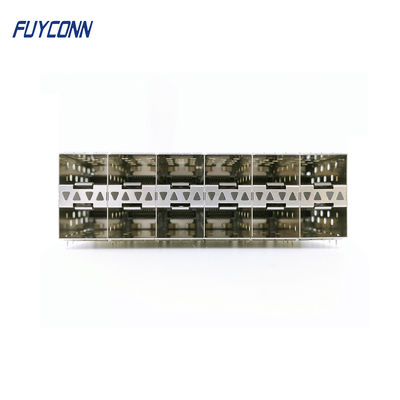

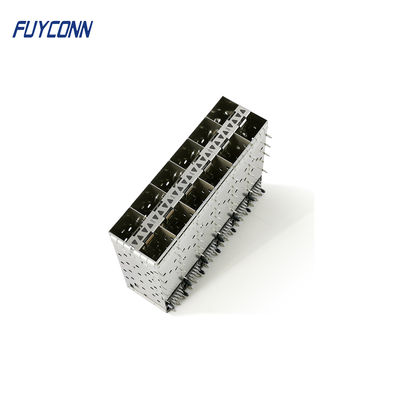

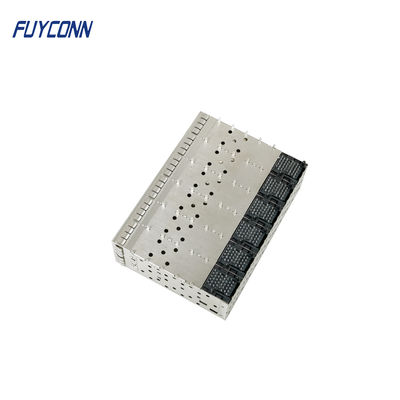

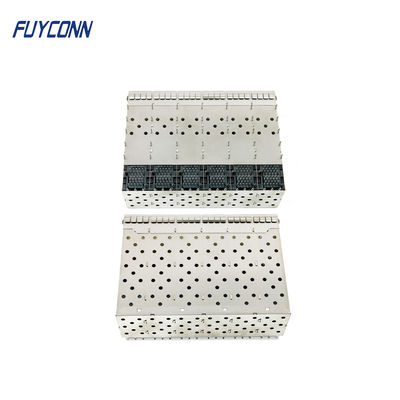

240 Pin Fiber Module Base Solderless Small Form-factor Pluggable Plus SFP+ Connector W/ Light, 2*6 Dual Port SFP Connector Product Description The SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE
