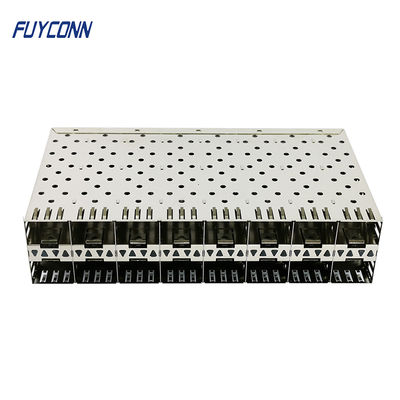

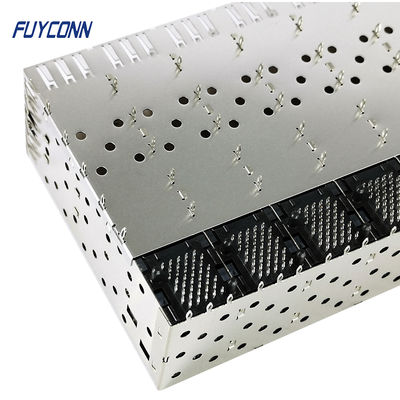

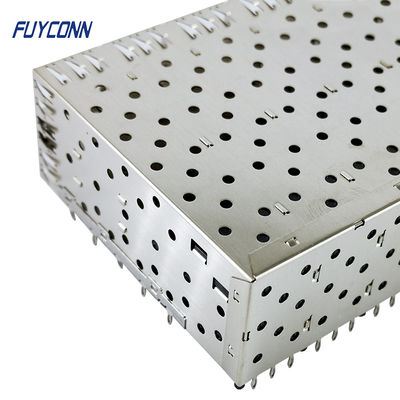

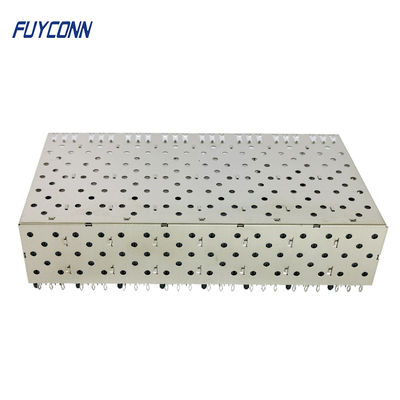

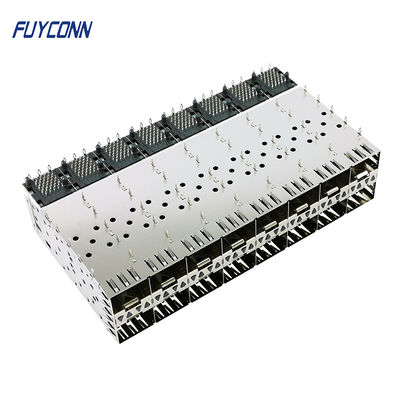

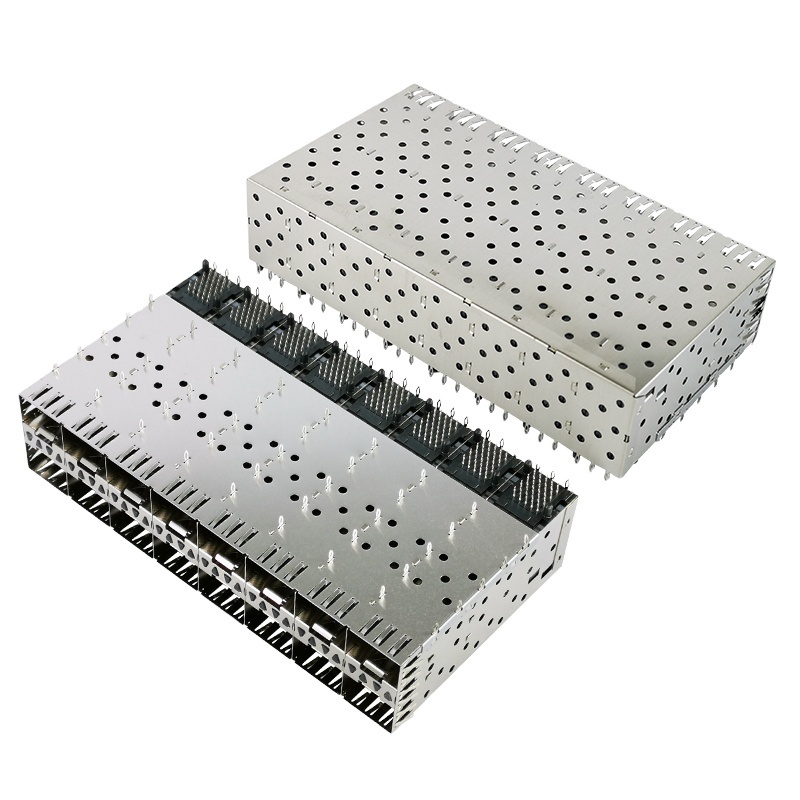

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

큰 이미지 : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

제품 상세 정보:

원래 장소:	광동, 중국
브랜드 이름:	FUYCONN
모델 번호:	FUYSFP22054-49

결제 및 배송 조건:

최소 주문 수량:	100
가격:	$20

접촉

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

설명

핀 수:	320pin	포트 수:	2*8 듀얼 포트
커넥터 성별:	여성	절연체 재료:	PBT
접촉 핀 재료:	형광 청동	장착 유형:	가압장착
라이트 파이프:	예	현재 등급:	1AMP
내 전압:	1 분 동안 500V	절연체 저항:	500mΩ min (DC500V)
접촉 저항:	최대 35mΩ	작동 온도:	+105' Ｃ에 대한 -55' Ｃ
데이터 속도 속도:	최대 10GB/s (SFP+)	마치다:	니켈 실버
쌓을 수 있습니다:	예
강조하다:	320pin SFP connector female press-fit , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security
